2. Introduction

Zenseio LoRa Soil Moisture Pro (LSMP) device is providing long-range telemetry for SDI-12 soil moisture probes and other commonly used industrial sensors using LoRaWAN wireless standard from LoRa Alliance.

Currently, Zenseio LoRaWAN Soil Moisture Pro device supports the following soil moisture probes:

• Sentek

• Greenshield

• AquaCheck

• HSTi

• TriBus


• GroPoint


• Meter Group / Decagon

Other types of probes and sensors may be readily supported through configuration or firmware update in the future. Please send an email message to support@zenseio.com with your inquiry.

3. Hardware installation instructions

3.1. Attach the antenna

Screw in firmly (but don't over tighten) the included antenna.

3.2. Open Zenseio device

The cover opens by opening two tabs on one side. No tools are required to open or to attach probes or other sensors that have stripped wires.

3.3. Turn on the power switch

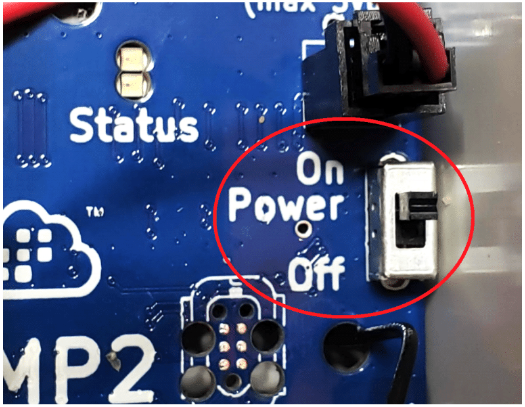

Slide the Power switch to “On” position to power up the device.

It’s best to turn on the device when it is in the range of the LoRaWAN gateway belonging to the network to which the device is registered to. During the initialization, the device will attempt to connect to the LoRa network and will start reading the probe/sensor and sending their values to the cloud servers. If there is no network in range, the device will not be able to join and will retry on the next scheduled update period (once an hour). After a few hours of retries with no success in joining the network, the device will switch to slower rate retries to conserve the battery.

When the device is turned on, you can initiate the network join and probe/sensor reading by briefly pressing the User Button as described in Section 4 or using the ZenConfig mobile app (Section 5).

3.3.1. Resetting the device

To reset LSMP device:

1. Slide the power switch to “Off” position.

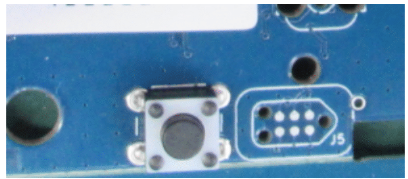

2. Press and release the User Button

3. Slide the power switch to the “On” position.

Resetting the device will set the interfaces to the last configuration and initiate the LoRaWAN network join procedure as if the device was freshly powered up.

3.3.2. Resetting to factory-programmed configuration

LSMP device preserves its configuration even when the power switch is turned off or when the battery is disconnected. If the device accidentally gets configured to undesired settings, it can be quickly restored to the original factory-programmed configuration with the following simple procedure:

1. Slide the power switch to the “Off” position.

2. Gently push the User Button.

3. Slide the power switch to the  “On” position while holding the User Sutton pressed.

4. Hold the User Button in place for a few seconds until both red and green Status lights start to flash.

5. Release the User Button.

The device will reboot with the original factory configuration in place. If both red and green Status lights don’t flash in the first few seconds after turning the power switch on, retry this procedure until it does.

3.4. Insert soil moisture probe cable through a cable gland

You may need to turn the cable gland counter-clockwise to loosen it first.

3.5. Connect sensor cable to board terminals

3.5.1. Insert the soil moisture probe wires into the terminal

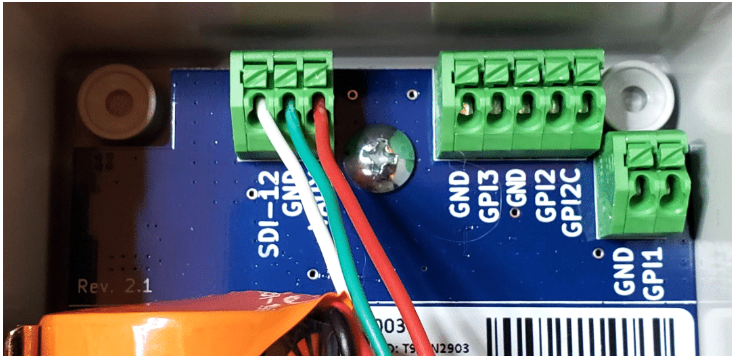

For each wire, press a small tab on the green terminal header. Insert stripped wire into the corresponding hole on the green terminal header. Release the tab. Check that the wires are attached securely by gently pulling on them. They should not come out.

For your convenience, the description of the probe wire colors is as described in the table below. But, always consult with the probe’s manufacturer for the definitive reference, in case the color assignment changes.

1. SDI-12 Data connects to terminal “SDI-12”
2. Power connects to terminal “VAUX”
3. Ground connects to terminal “GND”

Important: Please note that while the SDI-12 standard is capable of connecting multiple SDI-12 probes to the same master logger, LSMP device supports one SDI-12 probe at a time. Do not connect more than one probe. Additionally, ensure that the SDI-12 address of the probe must be “0”.

3.5.2. Connect other sensors using GPI

Aside from SDI-12 interface, LSMP devices can monitor many different types of commonly used industrial sensors using other standard interfaces: tipping rain buckets, pressure switches, pressure transducers/transmitters, flow meters, temperature sensors, and others. There are 3 independent general purpose inputs (GPI’s) that can be configured via the mobile phone app or via radio downlink commands to read several types of analog and digital interfaces, with capabilities as shown in the table below.

Note: Default GPI configuration is “Any Level Trigger” (activated on both rising and falling edges) for GPI1 and GPI2, and “Thermistor” for GPI3.

Default configuration for VAUX is 8V.

WARNING: If using sensors requiring different configuration than these factory-programmed defaults, VAUX and GPI settings have to be configured with ZenConfig mobile app (as in Section 5) before connecting any sensors to the header or they may get damaged from over-voltage.

WARNING: Do not connect any source exceeding 26VDC on any GPI header connector or LSMP may get damaged. Do not connect any A/C sources. Ensure not to invert source polarity, that is connecting positive voltage to GND input and negative voltage to GPI input. Damage from improper voltage levels or mis-wiring will void the warranty.

If the sensors are externally powered, LSMP device can generate appropriate supply voltage (5V, 8V, 9V, or 12V) on the VAUX header connector during the time the sensor is read.

Note: when sharing VAUX among two or more sensors (including SDI-12 probes), ensure the supply voltages are compatible with each other, or the sensors can get damaged from overvoltage. For example, if SDI-12 probe requires 2.7V to 16V supply and a pressure transducer requires 3V to 5V supply, set VAUX to 5V since it is common to both voltage ranges. However, in another example, if a pressure transducer requires 9V to 24V supply and a leaf wetness sensor requires 2.5V to 5V supply, these two sensors are not compatible with each other (since there is no voltage overlap that is supported by VAUX), and two separate LSMP devices have to be used for for such two sensor.

Pressure switches, trip wires, etc.:

1. Select “High Level Trigger”, “Low Level Trigger”, or “Any Level Trigger” mode in ZenConfig mobile phone configuration app.

2. Connect COM (black) wire to GND header connector.

3. Connect NO (normally open) or NC (normally closed) wire to the selected GPI header connector.

Tipping rain bucket installation

Generic rain buckets with two wires:

1. Select “Pulse Counter (debounce)” mode in ZenConfig mobile phone configuration app.

2. Connect one wire into the selected GPI header connector.

3. Connect the other wire into the GND header connector.

Flow meter installation

Note: Only flow meter’s pulse count outputs are supported. Only self-powered flow meters are supported.

1. Select “Pulse Counter” mode in ZenConfig mobile phone configuration app.

2. Connect COM wire to GND.

3. Connect pulse counter output to the selected GPI header connector.

4-20mA current loop sensor installation

(for example, pressure transducers and many other sensor types with 4-20mA output signal)

2 wire sensors (power supply and 4-20mA current loop output combined)

1. Select “4-20mA” mode in ZenConfig mobile phone configuration app.

2. Select appropriate VAUX voltage level supported by the sensor and compatible with other sensors using VAUX power supply.

3. Insert jumper cable between VAUX and GPI2C header connectors. Jumper cable is just an insulated short (3") wire (AWG24 to AWG16) with stripped ends.

4. Insert sensor’s red wire into GPI2 header connector

5. Insert sensor’s COM (black) wire and ground/shield wire (if there is one) into GND header connector next to GPI2

4 wire sensors (power supply and 4-20mA current loop output separated)

1. Select “4-20mA” mode in ZenConfig mobile phone configuration app.

2. Select appropriate VAUX voltage level supported by the sensor and compatible with other sensors using VAUX power supply.

3. Insert sensor’s positive power supply wire into VAUX header connector.

4. Insert sensor’s COM wire into GND header connector.

5. Insert sensor’s positive 4-20mA loop wire into GPI2C header connector.

6. Insert sensor’s negative 4-20mA loop wire into GPI2 header connector.

Sensor with voltage output installation

(for example, pressure transducers and many other sensor types with analog voltage output signal)

1. Select “4-20mA” mode in ZenConfig mobile phone configuration app.

2. Select appropriate VAUX voltage level supported by the sensor and compatible with other sensors using VAUX power supply.

3. Insert sensor’s COM/ground (typically black) wire to GND.

4. Insert sensor’s positive power supply (typically red) wire into VAUX header connector.

5. Insert sensor’s voltage output wire into GPI2 or GPI 3 header connector.


Thermistor (Temperature Sensor) installation

Note: Currently, only thermistors sold by Zenseio are supported. The following installation is for this thermistor only.

1. Select “Thermistor (1-Wire)” mode in the mobile phone configuration app.

2. Twist red and blue wires together and insert them into the GND header connector next to GPI3.

3. Insert yellow wire into the GPI3 header connector.

Note: Voltage, current, thermistor, and pulse counter sensors can be configured to generate LoRaWAN message alerts if outside the defined input range. See Zenseio mobile phone app for more details.

3.5.3. Tighten cable gland

Turn the cable gland clockwise to tighten it to provide water-resistance, but do not overtighten.

3.6. Close and secure the lid

Close the lid and latch tabs to lock it. Ensure that no wires are caught in the seam.

3.7. Removing battery connector

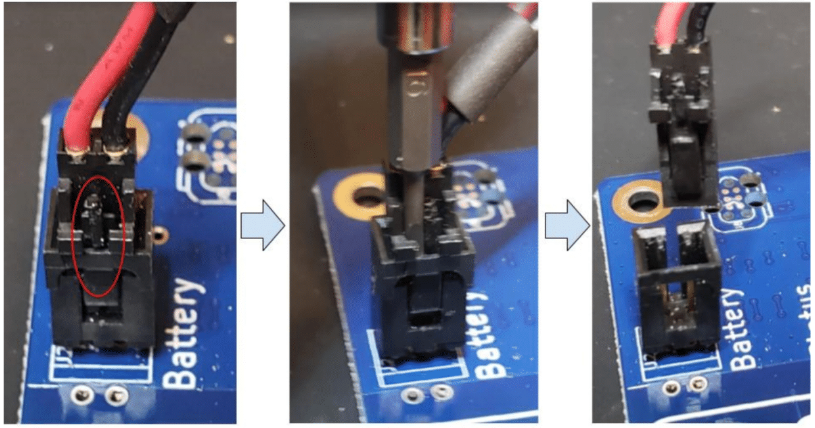

The battery connector uses a locking mechanism to hold it reliably in place. It has to be disengaged first, so it can be removed effortlessly, without breaking the connector. Since the locking tab is very small, it’s best to use a small, flat-tip screwdriver to push it, as in the photos below.

4. Triggering probe measurements and sending uplink messages on-demand

LSMP device contains the User Button which is used to trigger probe measurements and sending sensor data to the cloud by momentarily pressing it. When the device is joined to the LoRaWAN network and within the range of a LoRaWAN gateway, an uplink with probe sensor data will appear in the cloud application within a minute or two. If the device is in shutdown state or has not joined the LoRaWAN network, it will wake up and initiate the network join procedure.

This mode is useful for quickly checking sensor probes and LoRaWAN network connectivity when installing the device in the field.

When the device is set to Hibernation Mode (via mobile phone app), the User Button can be used to exit this shutdown state by simply pressing it briefly. Green LED will blink briefly to indicate a wakeup event. It’s best to wake up the device only in LoRaWAN network range, to prevent excessive battery drain when the device tries to unsuccessfully join the network on each update period when there is no network coverage.

5. Device configuration via ZenConfig mobile phone app with NFC

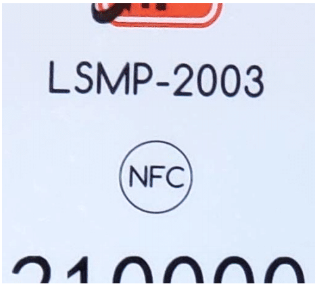

LSMP device provides a method of configuring its configuration using a mobile phone with NFC capability (no cellular data plan is required). The app can be downloaded from Google Play app store or Apple App store.

To read the device configuration, open the app on the mobile phone and briefly tap on the silver circle on the front label of the enclosure with the phone (where its NFC antenna is located). Then the configuration options can be modified in the app. To write the new configuration, press the “Write” tab and tap again on the silver circle with the phone to complete the programming.

“Status” tab in the app allows you to view the various status info about the device.

Please see “Zenseio Mobile App User Guide” for detailed instructions on how to use and configure LSMP with the app.

6. Device mounting

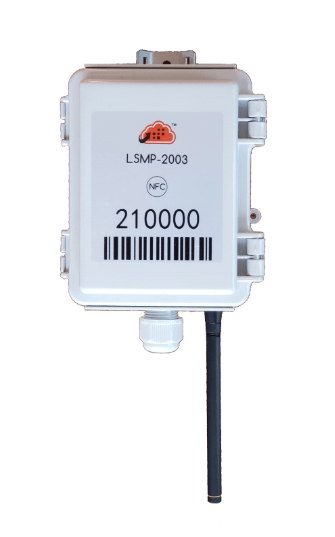

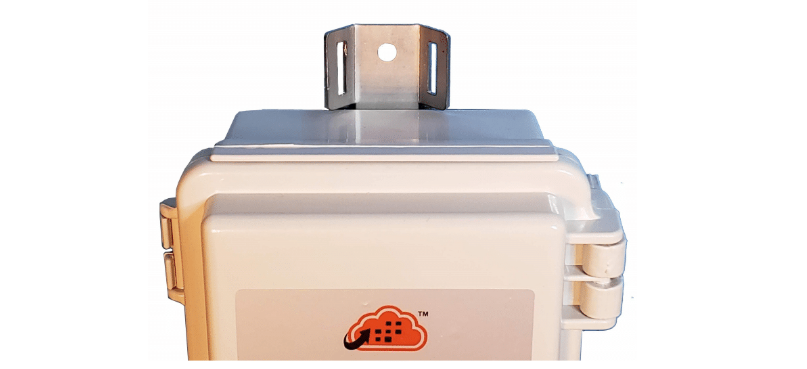

LSMP device includes a universal mounting bracket that allows you to mount it easily either to a wooden flat surface (for example post, fence, board)  or to a round pole (for example metal, concrete). Ensure that the device is mounted upright and there is no possibility of submersion in water during rain or snowmelt.

6.1. Mounting to a wooden surface

1. Turn the metal bracket so the flat side is on the back side.

2. Screw in or nail the bracket to a flat wood surface through the middle, round hole.

6.2. Mounting to a pole

1. Turn the metal bracket so the curved side is on the back side.

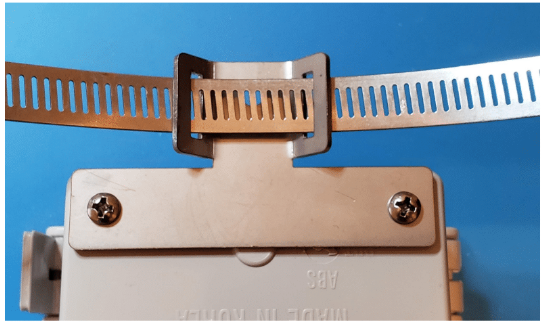

2. Thread a hose clamp (max width 0.5”) through the two rectangular slots.

3. Tighten the hose clamp around a pole

7. Firmware upgrade procedure

NOTE: Only Windows 10 or 11 is currently supported.

Link to video showing the procedure.

This process will update LSMP device to the latest firmware version. It will also update the device configuration to the default one.

The process is very easy and takes about a minute. All that is needed is a standard micro-USB cable (or a programming dongle for older Zenseio devices) and a Windows PC.

When updating LoRa Devices (LSMP), rarely the radio firmware requires updating before the device runs its own update. This is done automatically during the update process, and the update software will show a confirmation message when the radio firmware update is complete before initiating the device firmware update. Do NOT unplug your device after the radio firmware update confirmation, as this will interrupt your device's update process, and may cause corruption to its firmware. Make sure to wait until both the radio and device are updated, and you are prompted that the firmware update is complete.

Preparations:

1. Download zenseio_firmware_upgrade.zip file and unzip it into a folder. (Remember the location of the folder.)



   IMPORTANT: if Zenseio advises you to use a different zip file, please do not use the referenced zip file. Instead, use the zip file that Zenseio recommends.

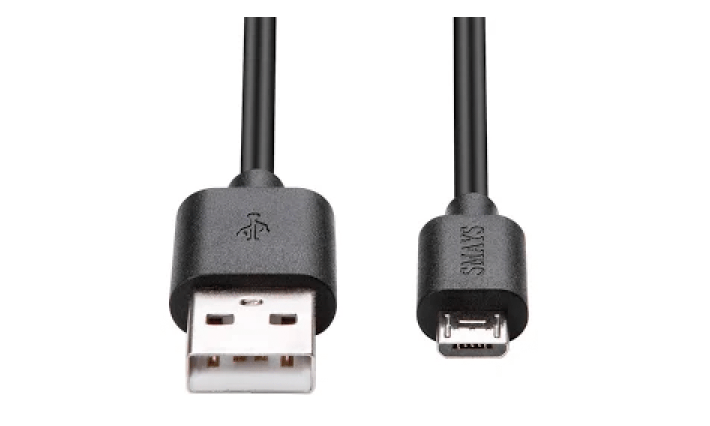

2. Procure a micro-USB cable (USB 2.0 cable with A Male to Micro B connectors)



   Some USB cables are only capable of transferring power, and therefore cannot transfer the data necessary to update your device.


   If you cannot locate your device in your computer's Device Manager, you may need to change your USB cable.

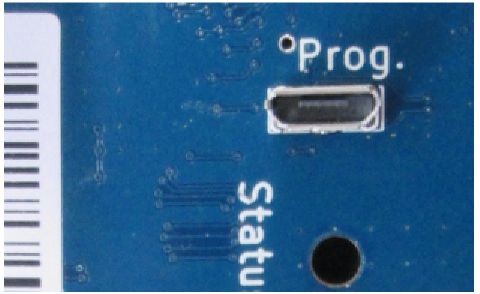

3. Locate USB programming header next to the battery





WARNING: Do not exert sideway force on the micro USB connector or it may break. And, only lightly push in the connector vertically after ensuring correct orientation until it is secured in the plug.

To update firmware, for each device/station:

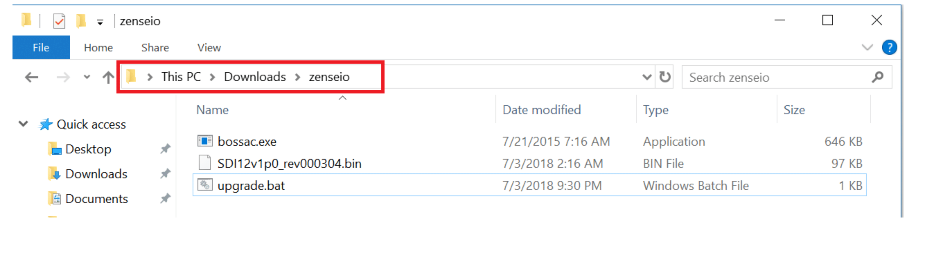

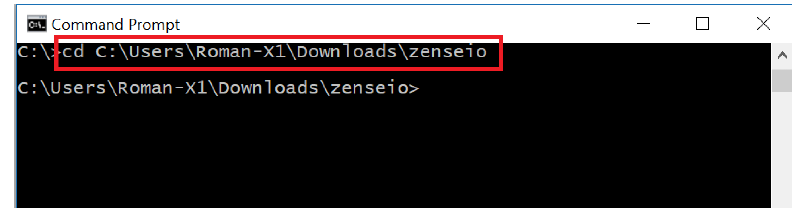

1. Use File Explorer to open this folder
2. Keep the device powered down

3. Connect USB cable to your PC and device

4. Turn on the power switch on the device

5. Double-click on the file "upgrade_zenseio.bat" and press ENTER when prompted
6. You should see green and red LED's starting to blink and the progress text written to the screen
7. DO NOT interrupt the process until you see the success message (interruptions may render the station "bricked")
8. Once the device update is finished, turn off power switch on the device and remove the USB cable

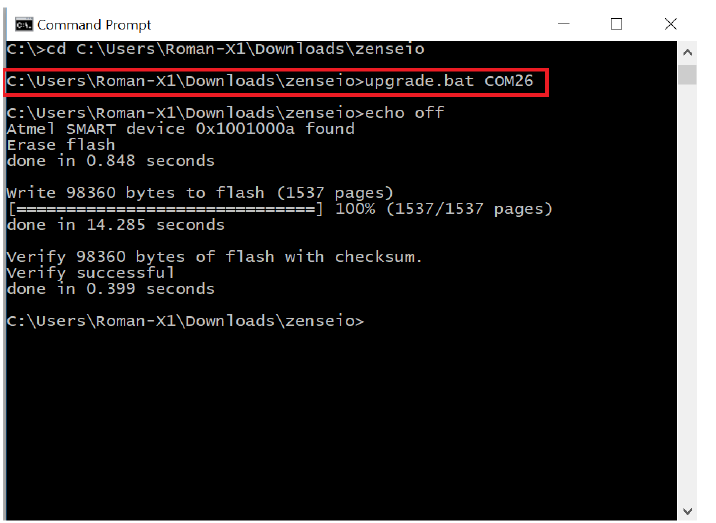

When your update is complete, you will see this confirmation message (Do NOT unplug your device until you see this):

If for any reason the update process fails and your device does not function correctly, please shut it down and contact Zenseio support.

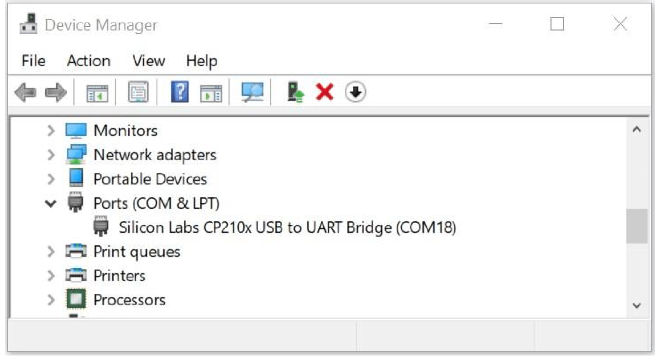

If the device is detected by Windows Device Manager as a Silicon Labs Device but it shows an error icon, you may need to update your USB driver in order for your update to work properly. Click the link below for more information.

-----------------------------------------------------------------------------------------------------------------------

Note: Read this in case you have trouble updating the firmware. It should resolve it.

-----------------------------------------------------------------------------------------------------------------------

How to update the Windows USB driver for LSMP and CSMP devices (zenseio.com)

This product is designed to provide years of service when it is properly installed and maintained. Here are the guidelines:

1. Do not attempt to disassemble or modify the device. Aside from the battery, there are no user serviceable parts inside.

2. Prevent water damage to the electronics inside by always closing the lid using two latches, locking the cable gland tightly around an external sensor cable, and installing the supplied antenna. When installed outdoors, the device should never have any exposed openings. Never submerse the device.

3. When closing the lid, ensure no wires or other objects are caught in the lid seams

4. Maintain the installation in the upright orientation unless approved differently by the manufacturer.

5. Always operate the device under the operating conditions specified in the Product Specification. Operating outside the specified operating range may result in damage to the device or fire.

6. Connect only the supplied or manufacturer-approved antenna, and always keep it connected when the device is in power “On” state. Always point the antenna tip vertically.

7. If needed, replace the battery only with the manufacturer-approved battery. Dispose of the old battery according to your local regulations.

8. If needed, the device exterior can be cleaned with water or diluted soap detergent - never with harsh detergents nor other chemicals. Never clean the interior with any liquid.

9. If requested by the manufacturer, perform the firmware upgrade according to the outlined procedure.

10. Do not misuse the device. Follow instructions on proper operation and only use as intended. Misuse could make the device inoperable, damage the device and/or other equipment, or harm users.

11. Do not apply excessive pressure on the device electronics. This could result in damage to the device or harm to users.

12. Do not use this device in explosive or hazardous environments unless the model is specifically approved for such use. The device may cause sparks. Sparks in explosive areas could cause explosion or fire and may result in property damage, severe injury, and/or death.

13. When the device reaches its useful end of life, dispose of it according to your local regulations.
