Online Dashboards User Guide (Summary)

Online Dashboards User Guide (Summary)

This is a high level User Guide. There is a much more detailed version.

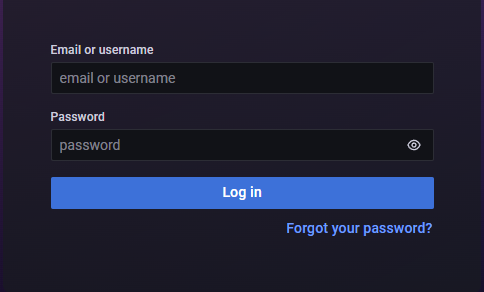

1. Login

Use the user name and password provided to you.
The letters are case-sensitive, so it's best to copy and paste username and password to avoid typos.
If you forgot your password, click “Forgot your password?” and a new one will be emailed to you

Once logged in, hover over a logo in the lower, left corner and choose appropriate option to change:
  1. viewed organization
  2. password
  3. preferences (default dashboard, theme, etc)

image showing how to change viewed organization and user settings

2. List of All Dashboards

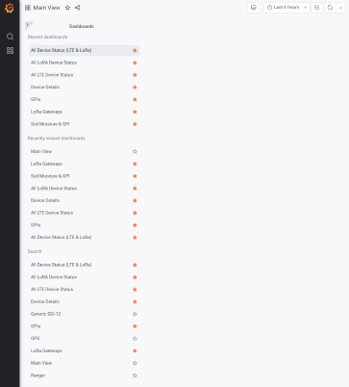

Click on The loupe or four squares on the left edge to list all available dashboards


Dashboards can be “starred” to list them first. Click on the star next to them to do that
The dashboard list and content may vary, depending on the types of devices being used
Select a dashboard by clicking on it


3. LoRaWAN Gateways

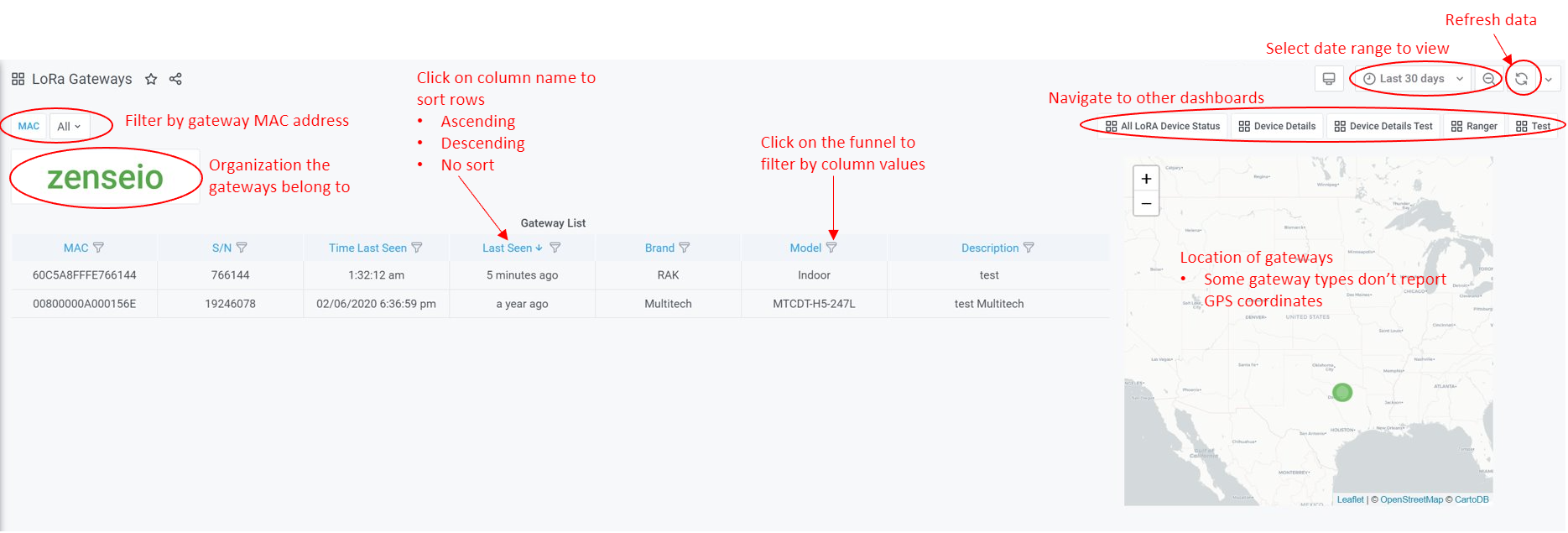

image showing cheatsheet for LoRaWAN Gateways dashboard

4. Aggregate LTE Devices Dashboard

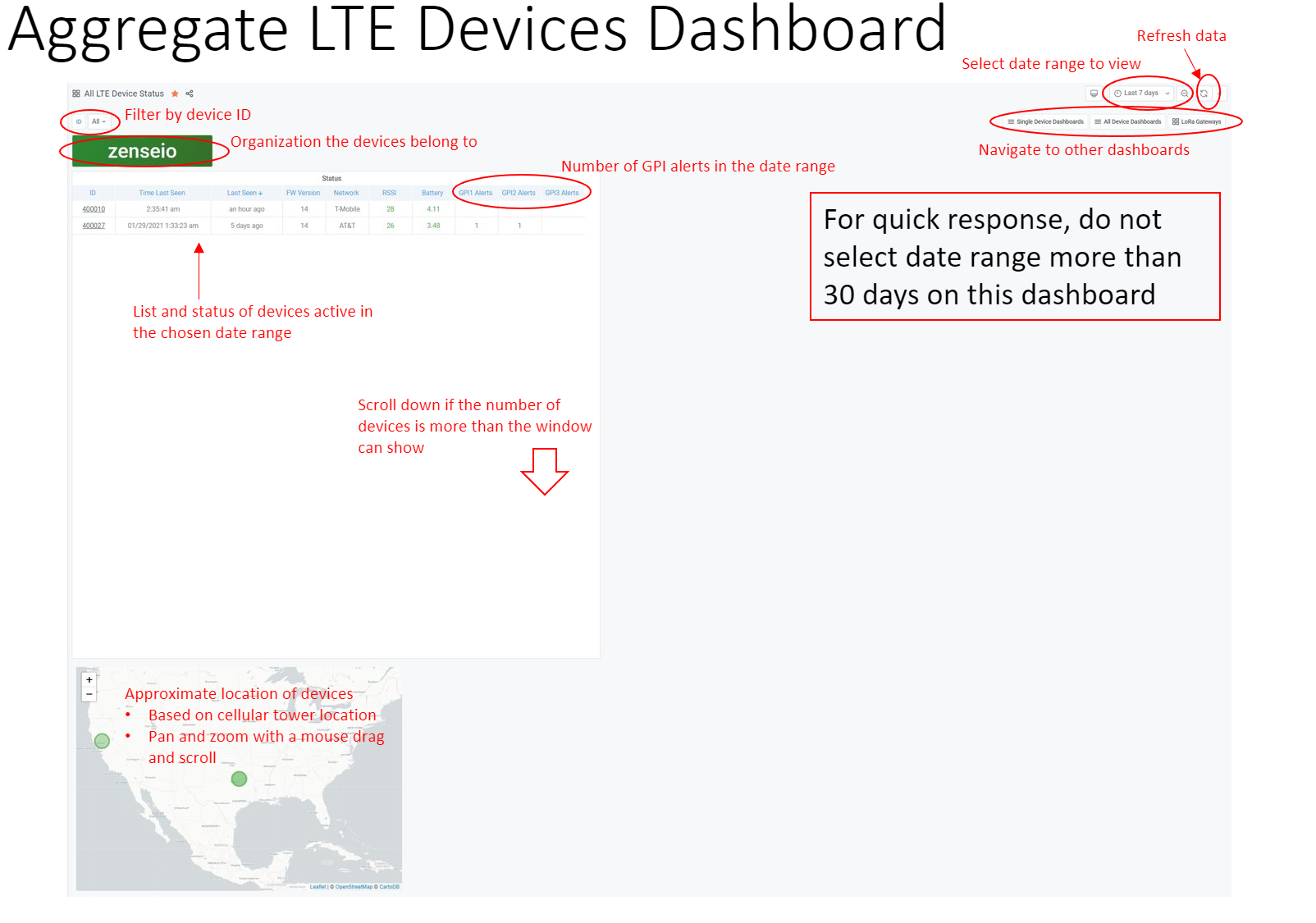

image showing cheatsheet for aggregate LTE Devices dashboard

5. Aggregate LoRa Devices Dashboard

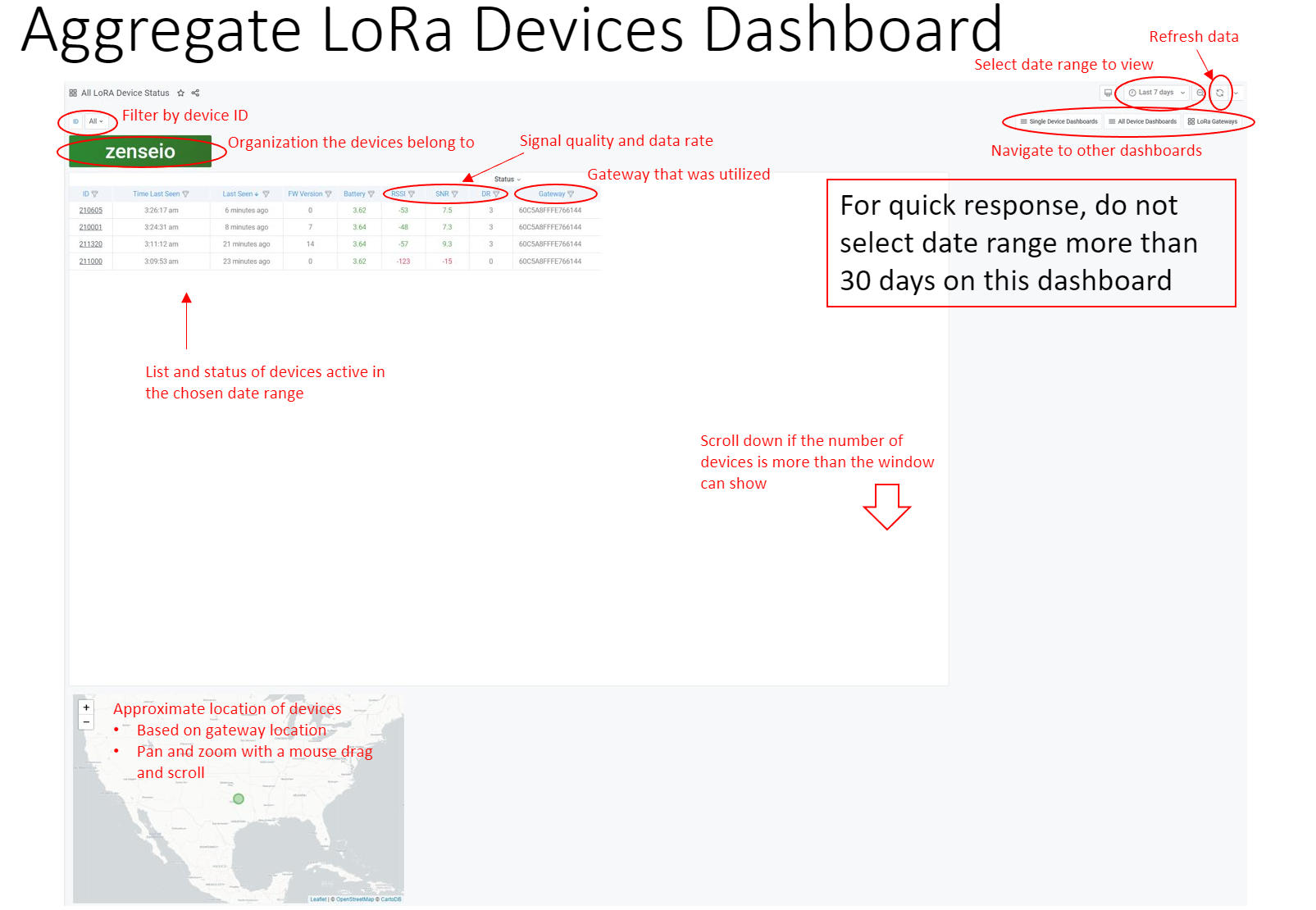

image showing cheatsheet for aggregate LoRa Devices dashboard

6. Device Details Dashboard

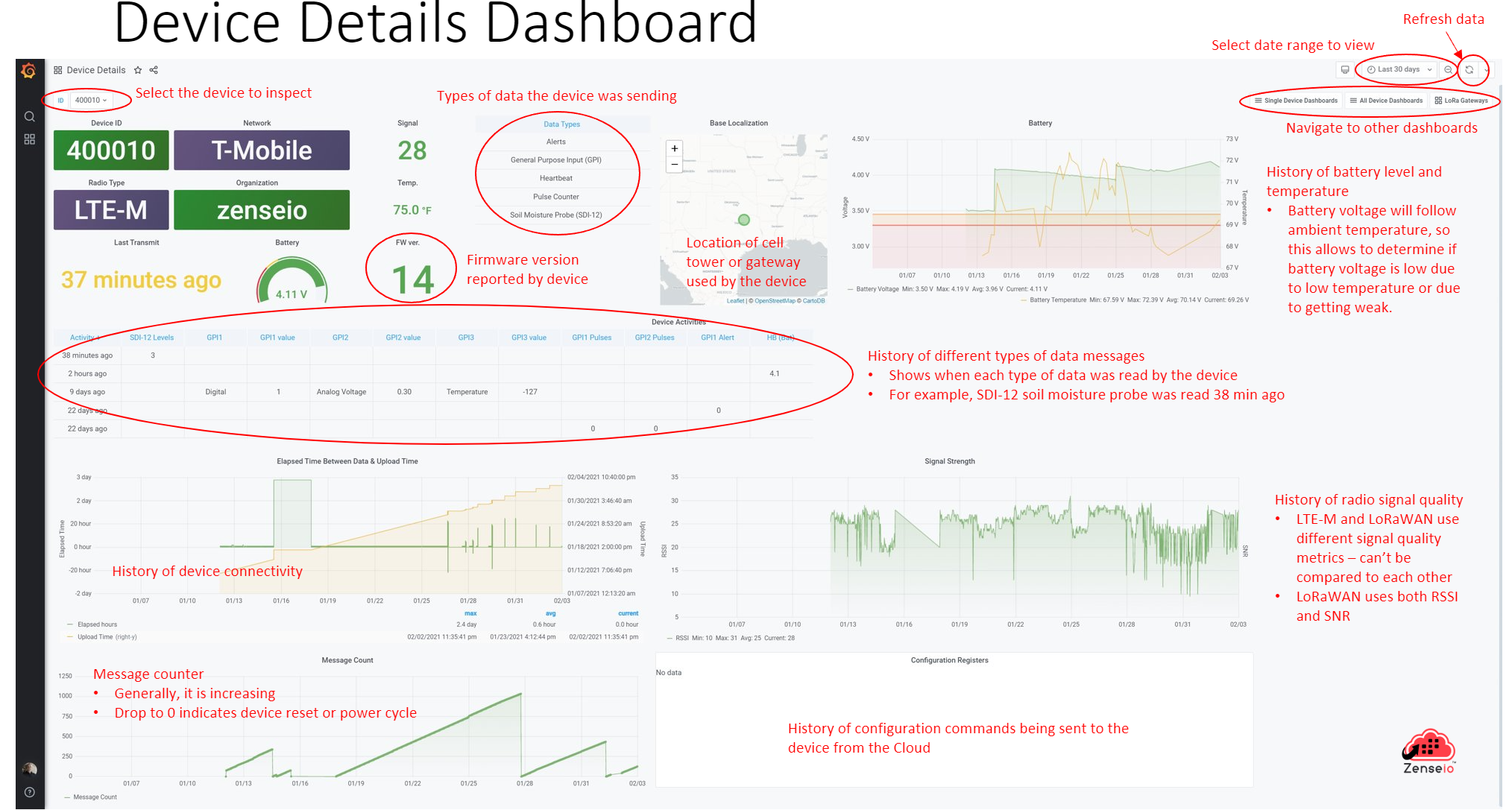

image showing cheatsheet for Device Details dashboard

7. Soil Moisture & GPI Dashboard

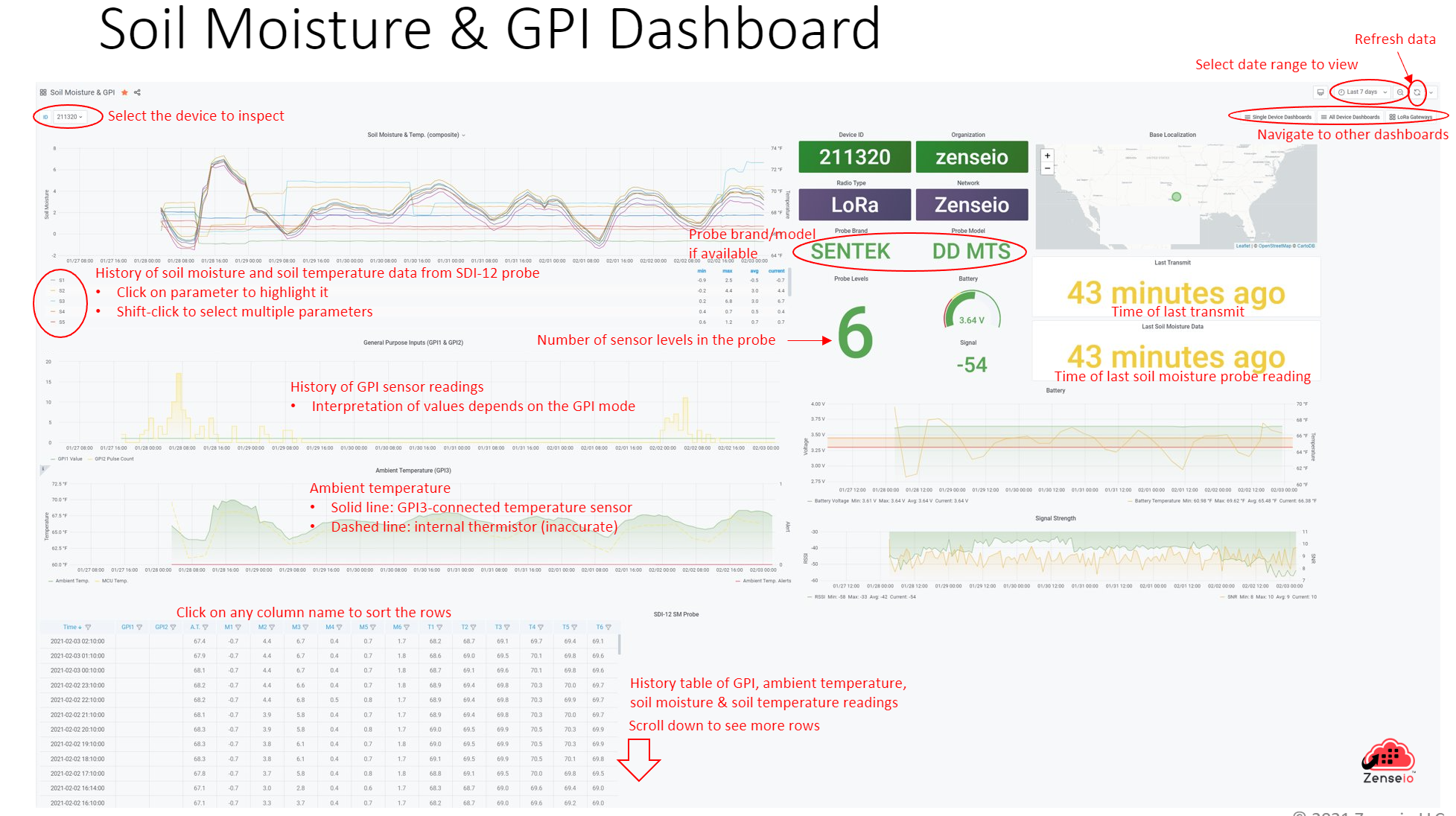

image showing cheatsheet for Soil Moisture and GPI dashboard

8. GPI Dashboard

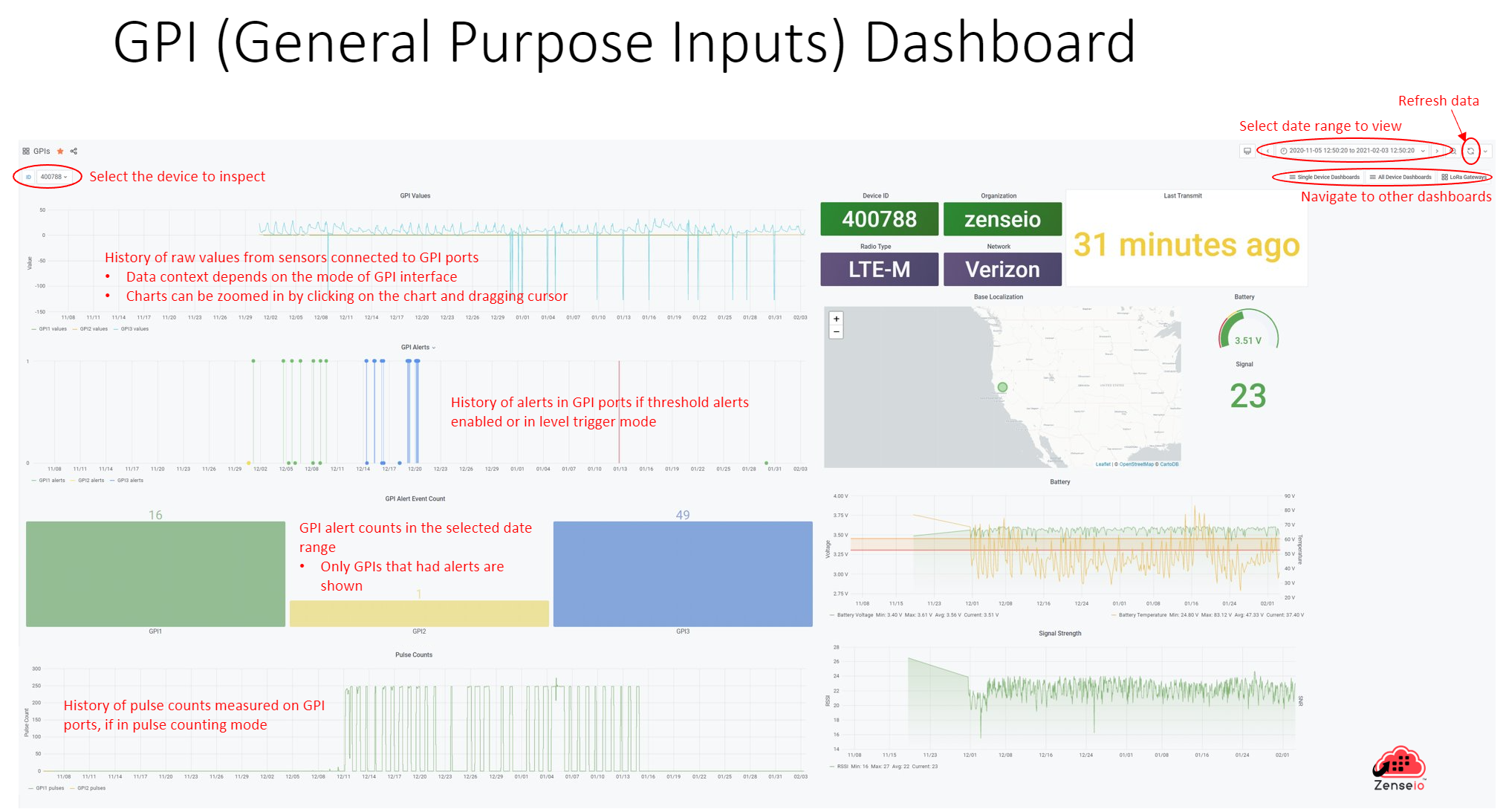

image showing cheatsheet for GPI (General Purpose Inputs) dashboard

9. Downloading Data to a Spreadsheet

image showing chow to download raw data from graphs or tables dashboard
