Zenseio Solar Charger Kit Specification (V2)

Zenseio Solar Charger Kit Specification (V2)

Document revision 2.1

  1. January 16, 2026
  2. Copyright 2017-2026 Zenseio LLC
NotesNOTE: This document applies to version 2 (V2) of the Zenseio Solar Charger Kit only

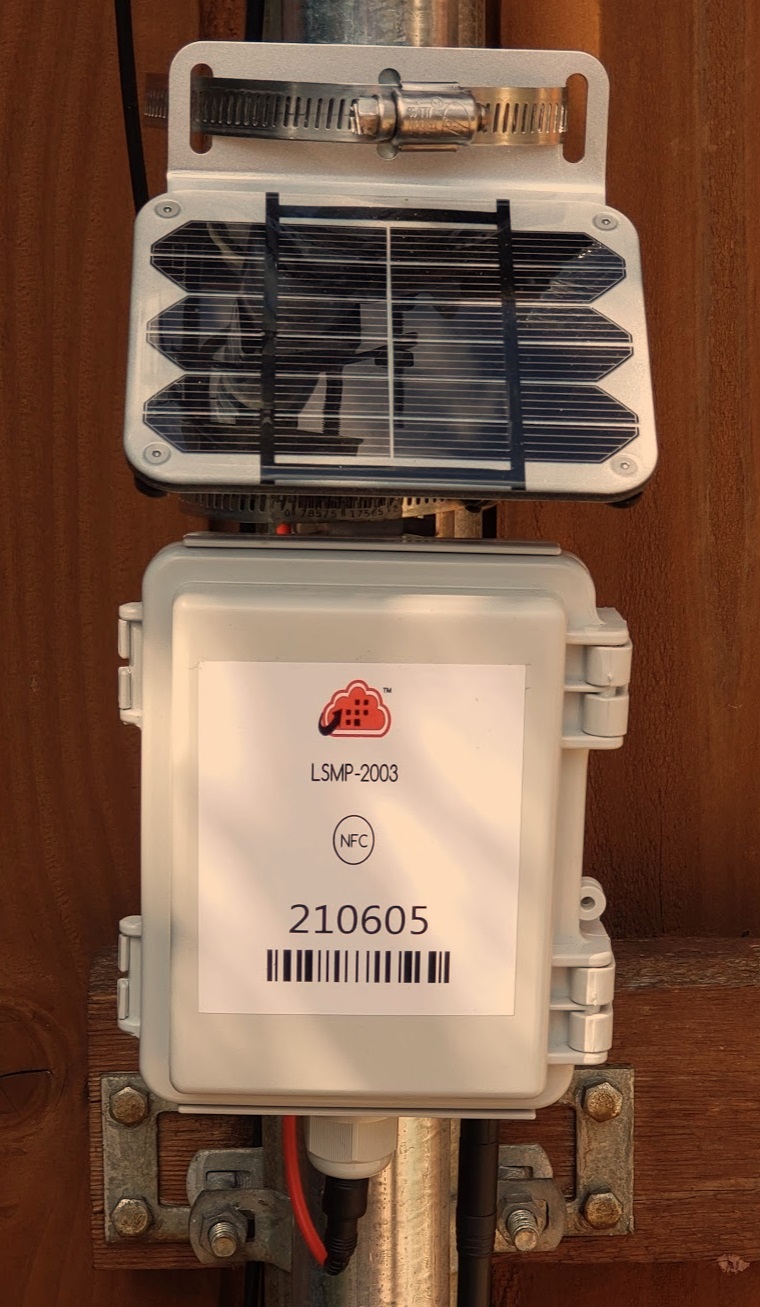

image showing solar panel connected to Zenseio device

1. Introduction

The Zenseio Solar Charger Kit V2 is designed specifically for CSMP and LSMP devices to provide a continuous and renewable power source in applications where external sensors, higher transmission rates, or extended radio activity prevent the device from entering deep sleep mode.


This kit enables long-term, low-maintenance operation by replacing the standard non-rechargeable battery with a rechargeable lithium-ion battery system powered by a solar panel and managed by an intelligent charging controller.


This kit replaces a non-rechargeable battery that was included with the CSMP/LSMP device.


Version 2 (V2) of the Solar Charger Kit includes improvements in charging speed and efficiency, better thermal protection, mechanical design, and installation convenience.

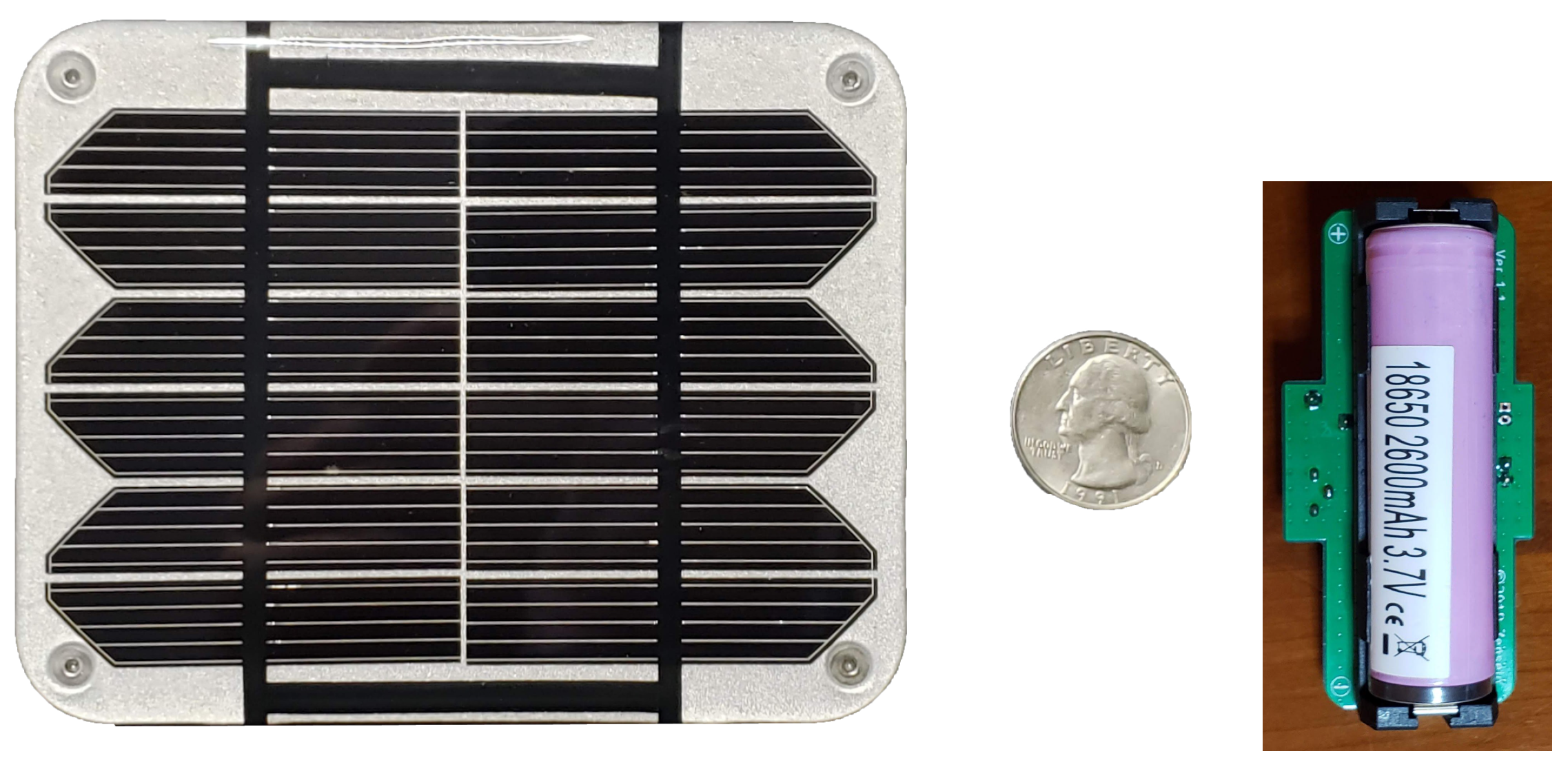

1.1. Kit components

The Zenseio Solar Charger Kit V2 consists of the following components:
  1. Solar panel with mounting bracket and extension cable
  2. Rechargeable lithium-ion battery cell
  3. Charging controller board with integrated protection and status indicators

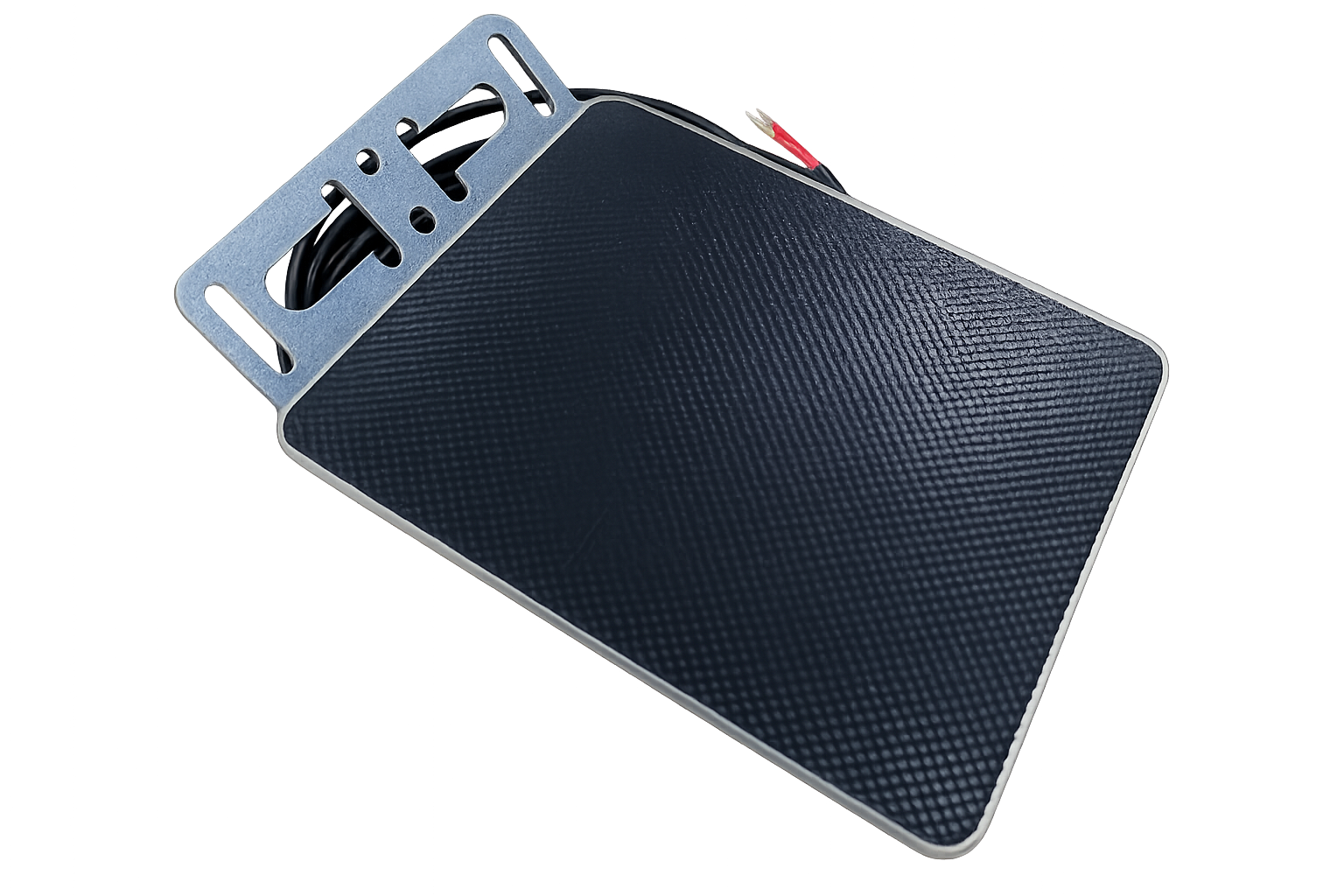

image of the front of the 2W solar panel

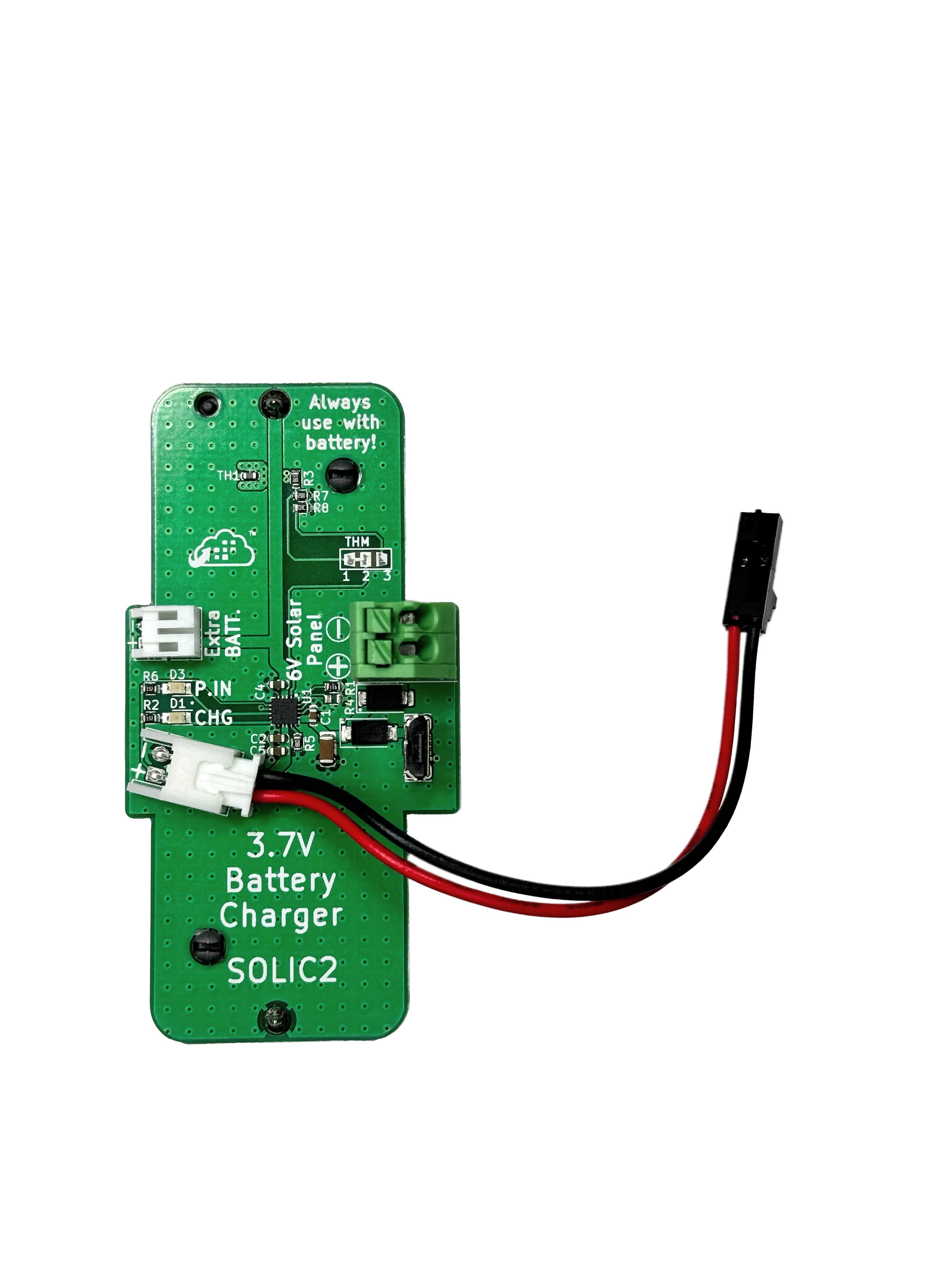

image of solar charging controller board

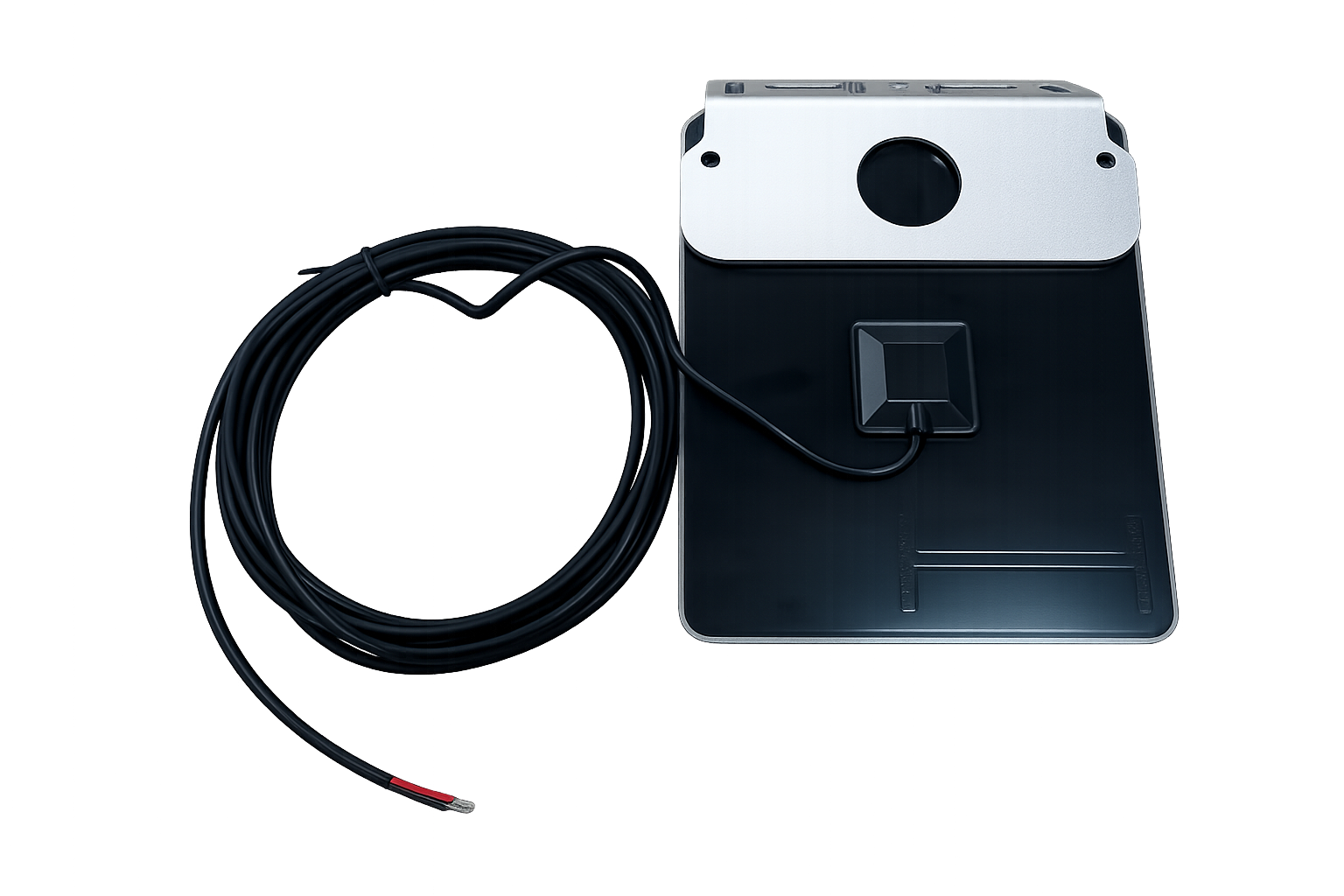

image of the back of the 2W solar panel

2. Specifications

2.1. Solar panel with mounting bracket


ParameterSpecification

Peak Power

2.38 W

Peak Voltage (Vmp)

5.3 V

Peak Current (Imp)

450 mA

Cell Type

High-efficiency monocrystalline

Surface Material

ETFE

Weather Resistance

Yes

UV Resistance

Yes

Mounting

Integrated bracket

Bracket Angle

45° from horizontal

Dimensions

5.35 × 4.4 × 1 in (136 × 112 × 2.5 mm)

Weight

5 oz (142 g)

Cable Length

10 ft (3 m)


2.2. Lithium-ion rechargeable battery


ParameterSpecification

Chemistry

Lithium-ion

Nominal Capacity

2600 mAh (0.2C, 2.75 V cutoff)

Nominal Voltage

3.63 V

Charge Cutoff Voltage

4.2 V

Discharge Cutoff Voltage

2.75 V

Operating Temperature (Charge)

32 to 113 °F (0 to 45 °C)

Operating Temperature (Discharge)

–4 to 140 °F (–20 to 60 °C)

Storage Temperature

–4 to 77 °F (–20 to 25 °C)

Cell Dimensions

Ø 0.72 in × 2.6 in (18.4 mm × 65.0 mm)

Cell Weight

45 g



2.3. Charging controller


ParameterSpecification

Supported Battery Types

Lithium-ion, Lithium-polymer

Supported Battery Size18650
Additional Battery ConnectorJST-PH (compatible with Adafruit batteries)

Input Voltage Range

4.35 V to 10 V

Nominal Charge Voltage

4.2 V

Maximum Charge Current

1000 mA

Charging Temperature Range

23 °F to 124 °F (–5 °C to 51 °C)

Charge Control Method

Constant Current / Constant Voltage (CC/CV)

Power-Path Management

Yes

Battery Thermal Protection

Yes

Overcharge Protection

Yes

Additional Battery Connector

Yes (wired battery)

Solar Panel Connector

Push-in terminal block

USB Charging Port

Micro-USB

Status Indicators

Power Input LED, Charge/Fault LED
