Installation and Setup of Pressure Transducer with 4-20mA Output
This guide explains how to configure your Zenseio station and wire a 2-wire (loop-powered) 4–20 mA pressure transducer / transmitter using GPI2 + VAUX.
These instructions are applicable only to pressure transducers with 4-20mA output. Pressure transducers with voltage output are supported, but require a different procedure. Please refer to the appropriate Zenseio user guide.
Pressure transducers that have current (4-20 mA) output can be connected only to GPI2 port.
1. Setup

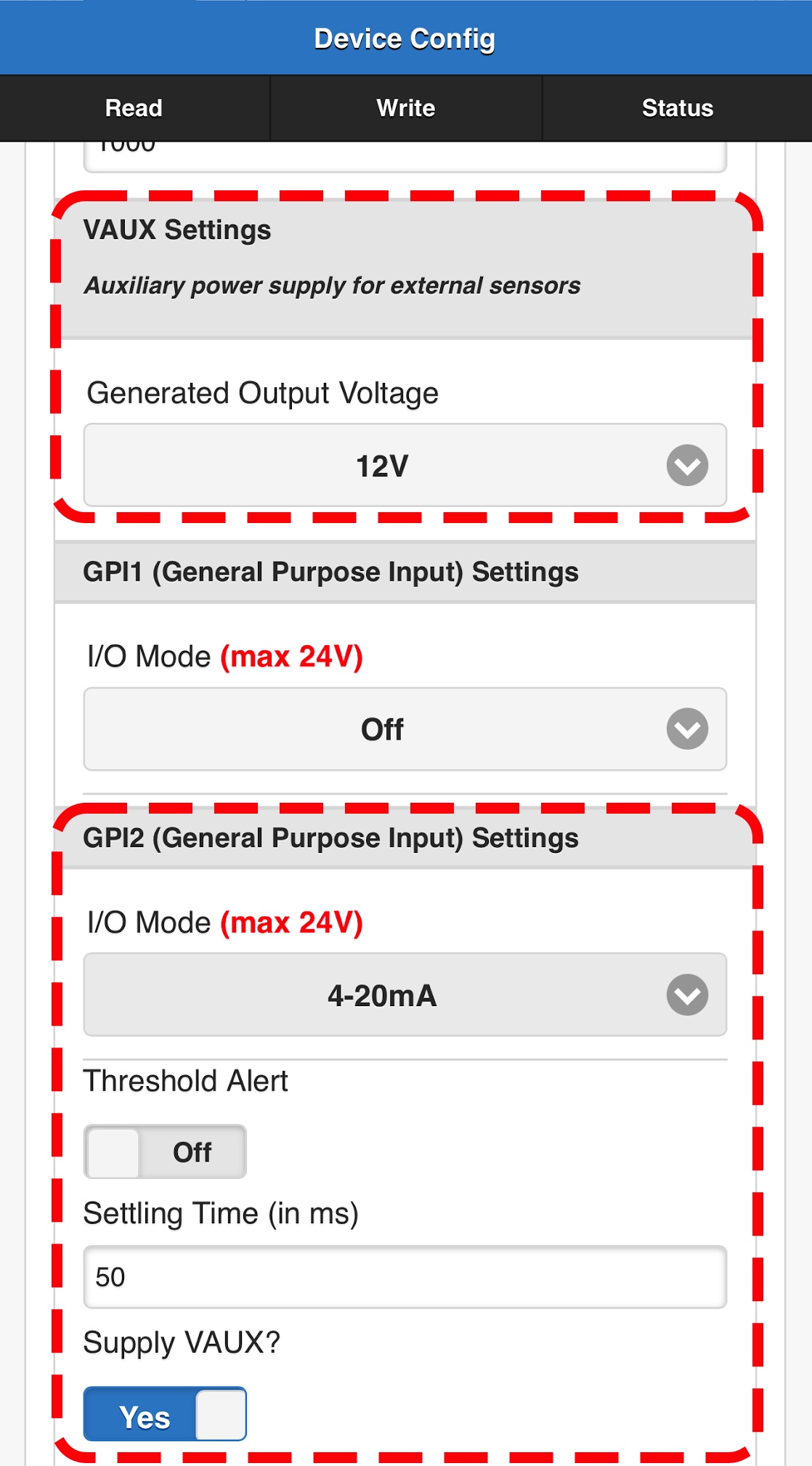

- Configure Device with ZenConfig Mobile App
- Set VAUX voltage output to the excitation voltage required by your sensor. Example: 12V for Lefoo T2000.
- Select “4-20mA” mode on GPI2 port.
Set settling time the sensor’s measurement / stabilization time. Example: 10 ms for Lefoo T2000. If unsure, use 1000 ms or higher.
- For "Supply VAUX?", select "Yes".

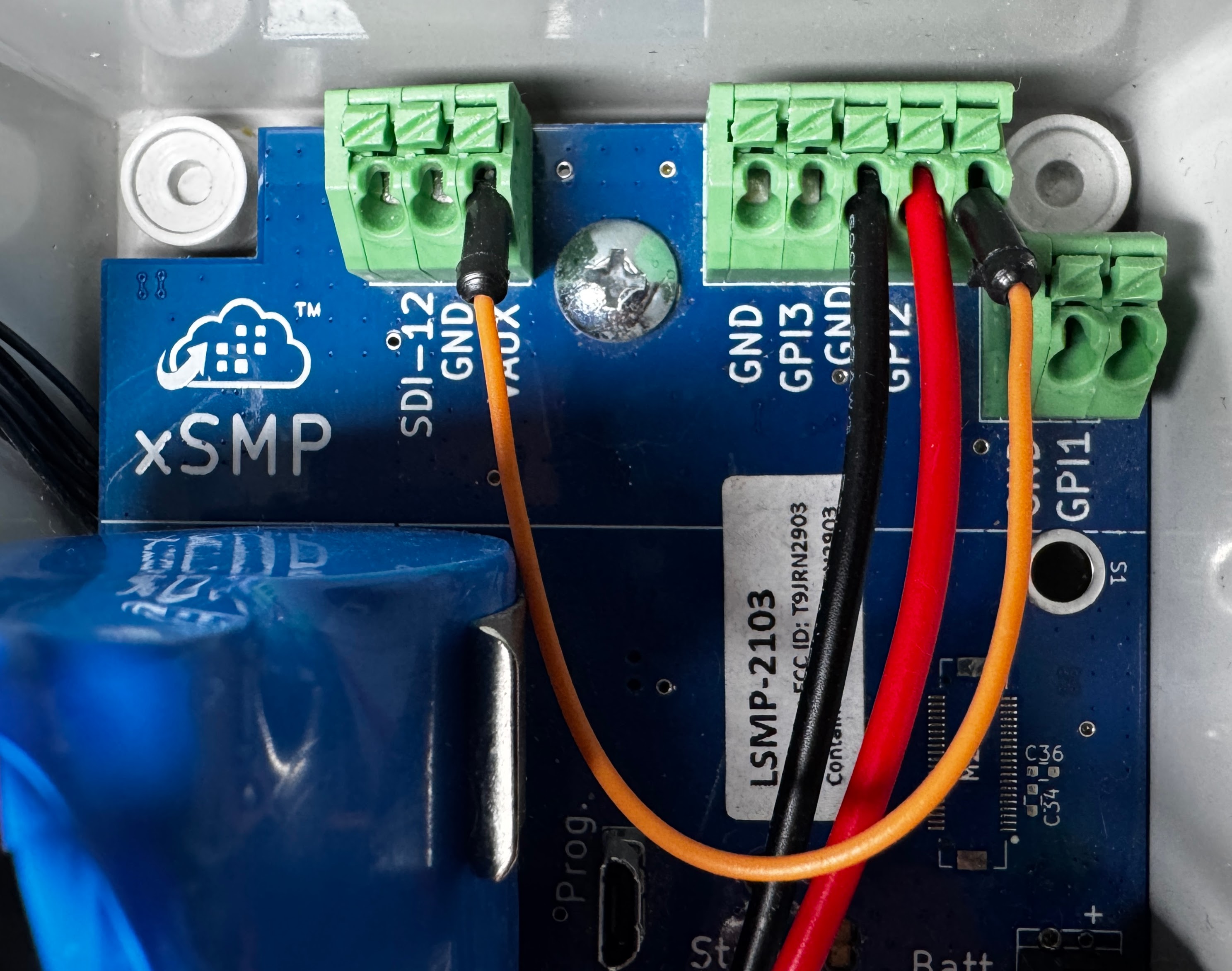

- Connect the Sensor (Wire color coding may differ between sensor models. Always refer to the specific sensor’s instruction manual)
- Connect sensor's COM / ground (usually BLACK) wire to GND.
- Connect sensor's positive / signal (usually RED) wire to GPI2.
Connect jumper wire between GPI2 and VAUX. This jumper is mandatory. It completes the current loop required for 2-wire 4–20 mA transmitters. Without this jumper, the reading will be 0 mA.
Verify Operation
Press the user button inside the device.
Wait approximately 1 minute.
Open ZenConfig → read NFC → Status page.
Check "Last GPI2 Reading". Expected value: between 4 mA (zero pressure) and 20 mA (full-scale pressure)
Troubleshooting if readings are incorrect:
Reading = 0 mA
Sensor disconnected
Missing VAUX → GPI2C jumper
VAUX not enabled for GPI2
Reading below 4 mA or above 20 mA
GPI2 mode not set to 4–20 mA
VAUX voltage too low
Settling time too short
2. Converting 4–20 mA to Pressure
(in your application software)
The formula:
Pressure = ((Measured Current - 4 mA) * Full-Scale Pressure Range) / 16 mA
where:
- Full-Scale Pressure Range = sensor’s maximum rated pressure (e.g., 100 PSI, 200 PSI, 10 bar)
- Measured Current = sensor's reading in mA (e.g., 12 mA)
- result is in the same units as Full-Scale Pressure Range
Examples
-----------
Example 1: PSI Sensor
Sensor range: 0–100 PSI
Measured current: 12 mA
pressure = (12 − 4) × 100 / 16
pressure = 8 × 100 / 16
pressure = 50 PSI
Result: 50 PSI
Example 2: Bar Sensor
Sensor range: 0–10 Bar
Measured current: 8 mA
pressure = (8 − 4) × 10 / 16
pressure = 4 × 10 / 16
pressure = 2.5 Bar
Result: 2.5 Bar
Notes:
- Some pressure transmitters report in PSI, others in Bar.
- Always use the unit specified by your sensor model.
