Wiring Instructions
  1. Remove the rubber plug from the small cable gland.
  2. Make sure the extension cable is not connected to the solar panel.
  3. Thread the solar panel extension cable through the small cable gland.
  4. Connect the red wire to the “+” (positive) terminal on the spring-loaded connector on the green solar charger board.
  5. To insert a wire into the spring-loaded connector:
    1. Press and hold the button on top of the connector.
    2. Insert the stripped end of the wire into the opening.
    3. Release the button to lock the wire in place.
    4. Gently tug on the wire to confirm it is securely locked.
  6. Connect the black wire to the “-” (negative) terminal using the same method.
  7. Tighten the cable gland to secure the solar panel extension cable.
  8. Plug the solar panel cable into the extension cable connector.

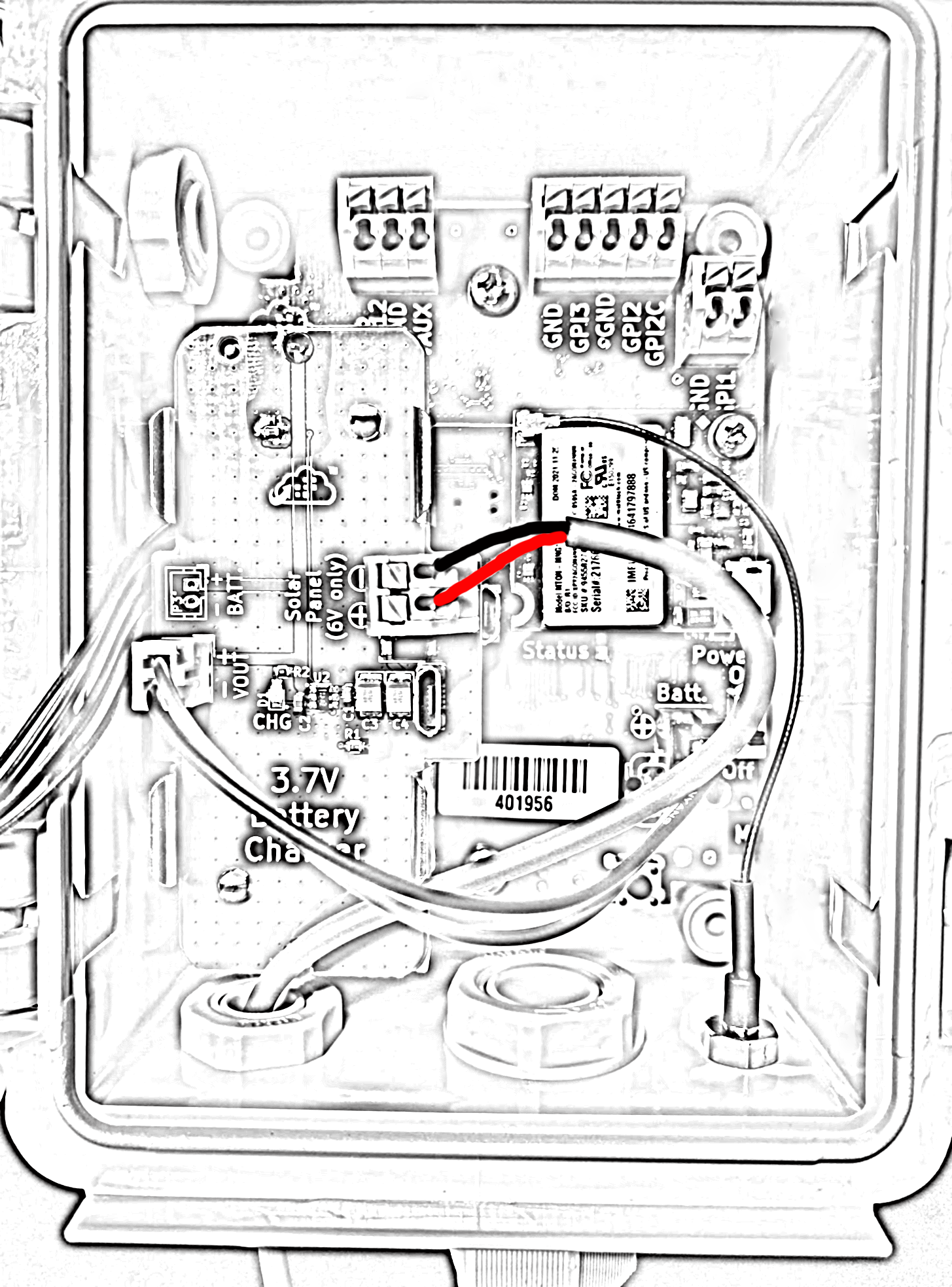

image showing how to connect solar panel wires to solar charging controller in Zenseio device



































Notes

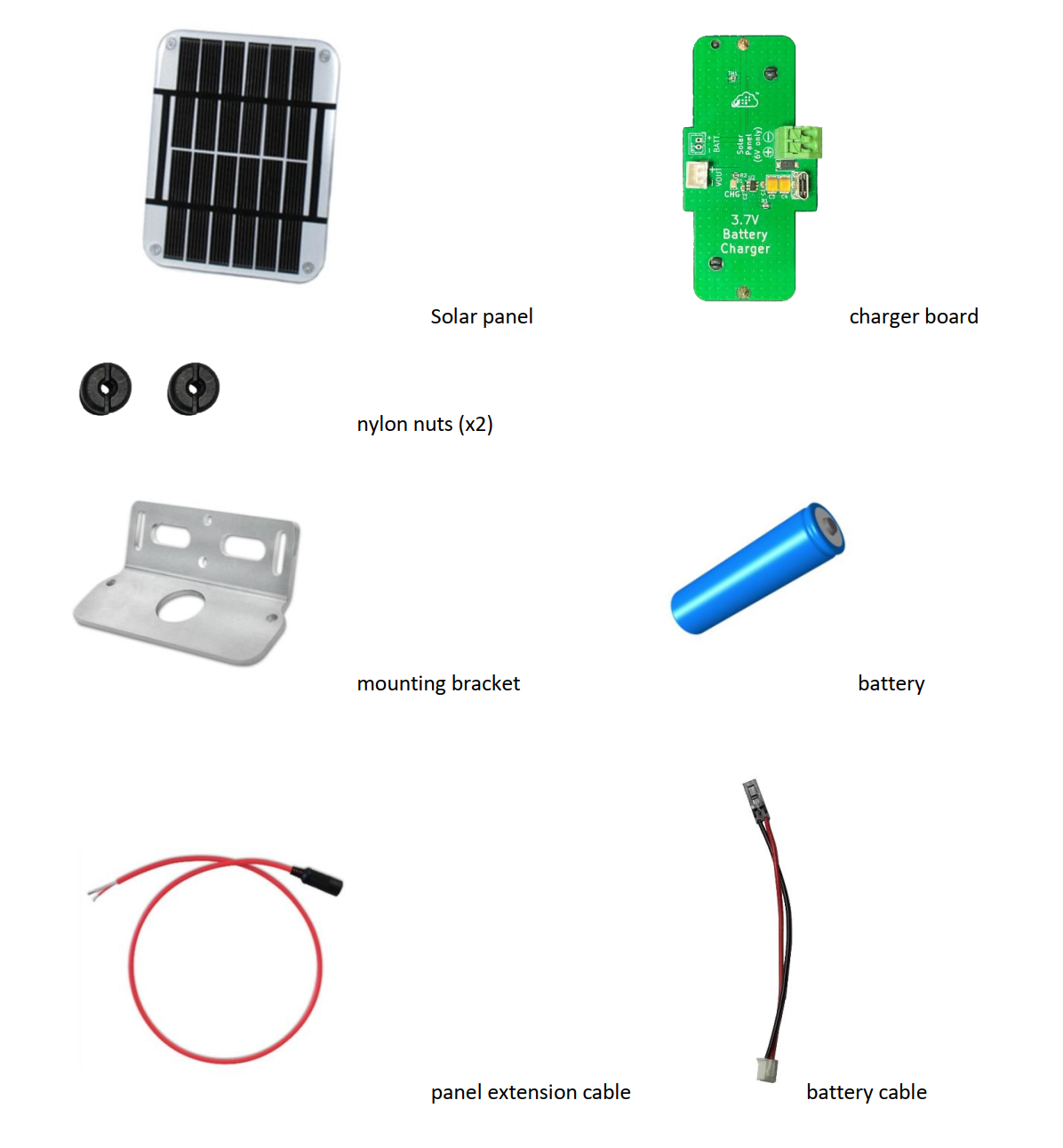

The Zenseio Solar Charging Kit is an optional accessory designed specifically for LSMP and CSMP devices. It replaces the standard non-rechargeable battery and enables long-term, low-maintenance operation.

See user manual for more details:  tinyurl.com/5n7btank
