LoRaWAN Range Tester Manual

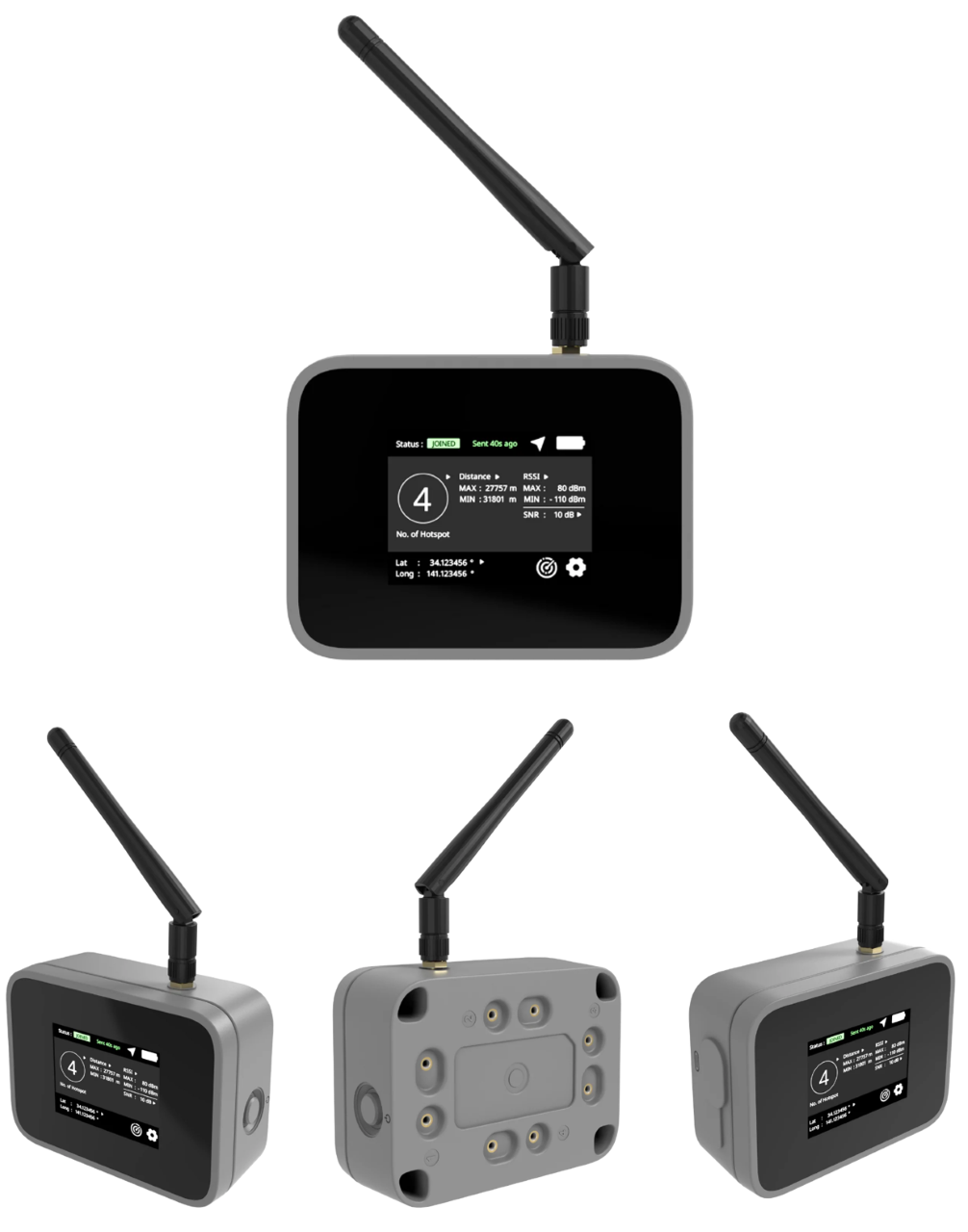

This is a LoRaWAN range tester and provides field coverage information for LoRaWAN gateways in the field:

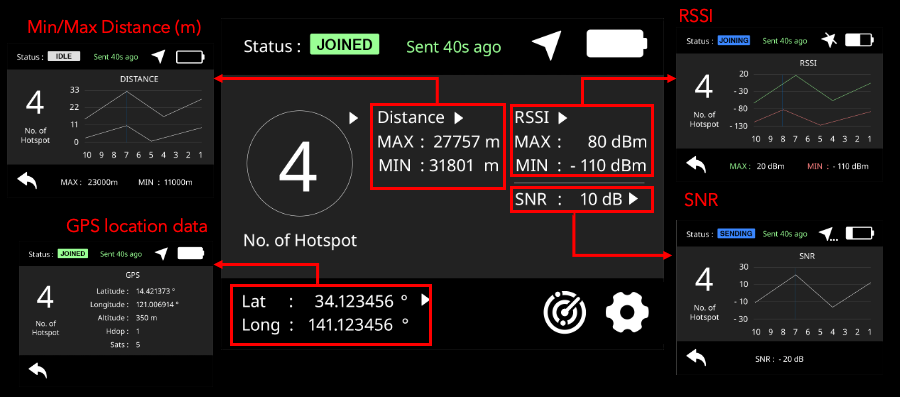

- Location GPS latitude/longitude
- LoRa signal strength (min/max)
- Distance to gateways (min/max)
- Number of gateways in range
- Rechargeable battery (by USB) and battery status
- Configurable TX interval, TX power level, and data rate

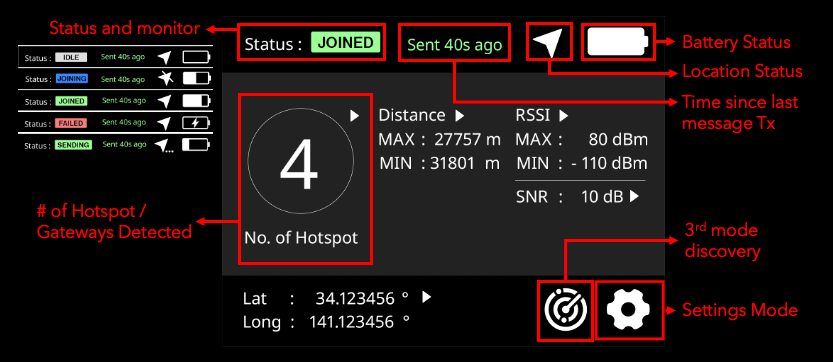

- TFT touch screen. Easy to use
It has been integrated with Zenseio LoRaWAN network server, so it works out-of-box. It is useful for finding acceptable locations for LSMP station installations.
